Remote Correction Control Panel
Differential and PIV Corrections from a Remote Location
Application:
Supports situations where registration adjustments are more conveniently made away from the primary Quarter-trol panel
Benefits:
Convenience, Improved Productivity, Better Results

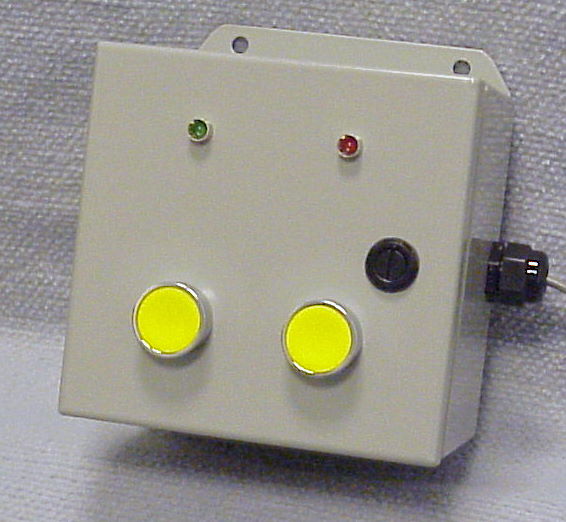

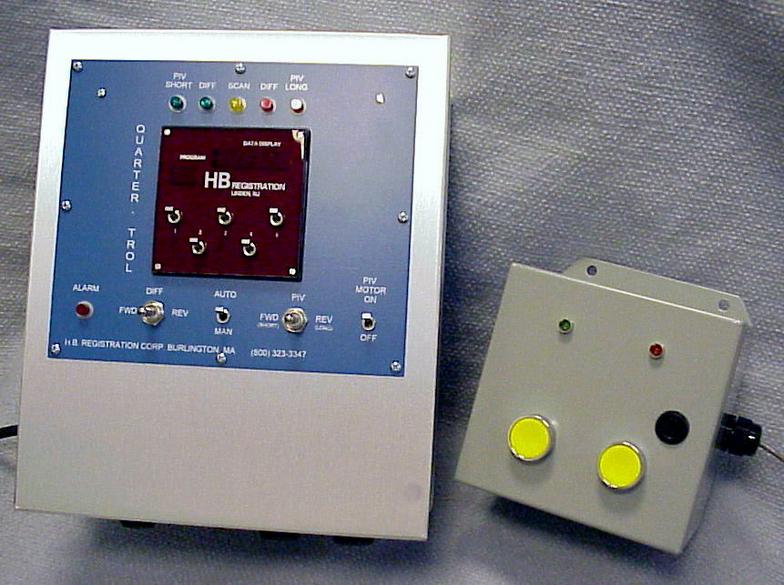

Remote Correction Control Panel for Quarter-Trol Registration Control Panel
Now you can make Differential or PIV corrections from a remote location up to 75 feet away from your primary Quarter-trol Registration Control unit. Simply use the push buttons on the front of the Remote Panel to make corrections in forward or reverse directions.
Connection to the Quarter-trol is simple. Just attach the wires from the Remote Correction unit to the correct screw terminals in the Quarter-trol enclosure. Red and Green lights on the front panel indicate when correction motors are engaged and the direction of the correction being made; Green for Forward, Red for Reverse. The Remote Correction unit has built-in logic that prevents automatic corrections, generated by the Quarter-trol unit, from conflicting with corrections made by the line operator at the remote location. No additional power is needed at the Remote location; power is supplied from the connection to the Quarter-trol panel.
Features/Capabilities
- Easy Operation - 2 control switches (forward and reverse corrections) and two indicator lights
- Flexible set-up allows installation for either Differential or PIV corrections.
- Quick installation
- 4 wire connection to Quarter-trol terminals
- Powered from Quarter-trol System, no addl. AC needed
- In-process registration adjustments can be made while the master Quarter-trol is in "Auto" mode
- Built-in logic prevents automatic Quarter-trol corrections from conflicting with operator corrections
- Panel display lights indicate when correction motors are engaged by operator or automatically by Quarter-trol
- Dimensions: 6"W * 6"H * 4"D w/ cable lengths up to 75 feet.
- Part Number 10-0355
